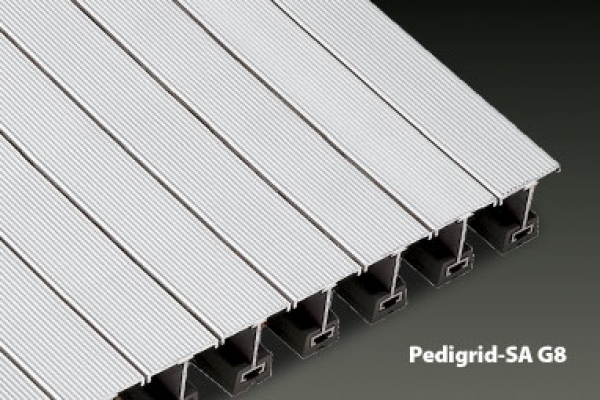

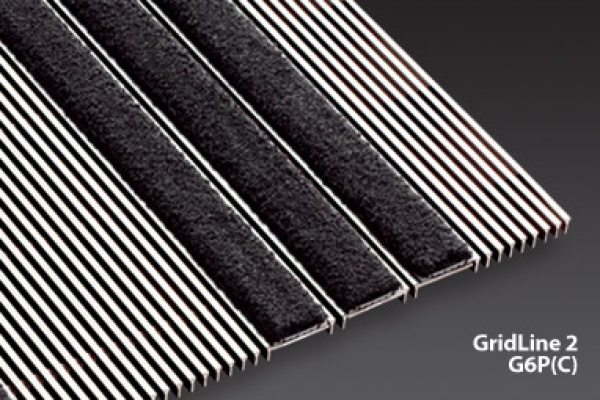

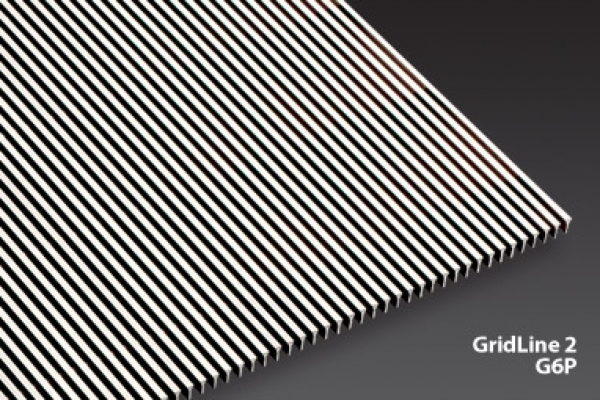

The C/S Pedisystems Entrance Grids Selector assists you in choosing the best architectural grid entryway for your building. Select between GridLine, Pedigrid, and PediTred models. A permanent and integrated solution to tracked in dirt and water Depth allows greatest capacity for trapped debris Many aesthetic surface choices to match any decor Engineered to handle high rolling loads 400-1,000 lb per wheel–best in the industry Best for new construction–a low profile version of PediTred can be surface mounted for existing buildings

Technical Summary

  • Range of entryway flooring grids that can incorporate any desired carpet or flooring
  • Grids comprise thin parallel slats 1 1/2 in (38.1 mm) that are hinged crossways
  • Different systems are offered that offer treads raised from the floor up to 1 in (25.4 mm) to allow for dirt and water drainage
  • Range of standard tread inserts are offered, including aluminum,carpet, poured abrasive, polyvinyl chloride (PVC), recycled rubber, FSC certified wood, bamboo, recycled rubber or cork
  • In addition, clients may specify any manufacturer’s hard backed carpet
  • Surfaces c withstand up to 1000 lbs (453 kgs) per wheel for rolling loads
  • Uses: flooring in commercial entryways.


  Injection MoldingNo
  Cold Pressing/Deep DrawingNo
  Blow MoldingNo
  Die cutNo
  Wood Working ToolsNo
  Metal Working ToolsYes
Usage Properties
   Fire resistanceHigh
   UV resistanceHigh
   Usage temperatureLow
   Scratch resistanceHigh
   Outdoor use No
   Wear ResistanceHigh
   Water ResistanceHigh
   Reflectivity Light absorbing
   Acoustics Sound diffusing
   Stain ResistanceHigh


Physical Properties
  Stiffness Semi-rigid
  StructureOpen Closed
  Surface HardnessHard
  Surface/Texture Matte
